📚 CMPE1250: Tutorial: Driving a 4-Digit UART 7-Segment Display with STM32G031K8

📋 Module Overview

  • The module has a built-in microcontroller that accepts UART commands.
  • You don’t need to multiplex segments manually—just send ASCII/hex commands over USART.
  • Typical pins exposed:
  • VCC: 5V
  • GND
  • RXD (receives UART data from STM32 - 3.3V logic supported)
  • TXD (unused)

1️⃣ Wiring to STM32 Nucleo G031K8

Part 2 – Wiring Connections (STM32G031K8 ↔ 4-Digit UART Display)

Display Module Pin STM32 Nucleo G031K8 Pin Notes
VCC 5V (CN7 pin 8) Check module spec; many accept both 3.3V and 5V
GND GND (CN7 pin 7 or CN10 pin 8) Common ground is essential
RXD USART1_TX STM32 transmits data to display

2️⃣ Command Protocol

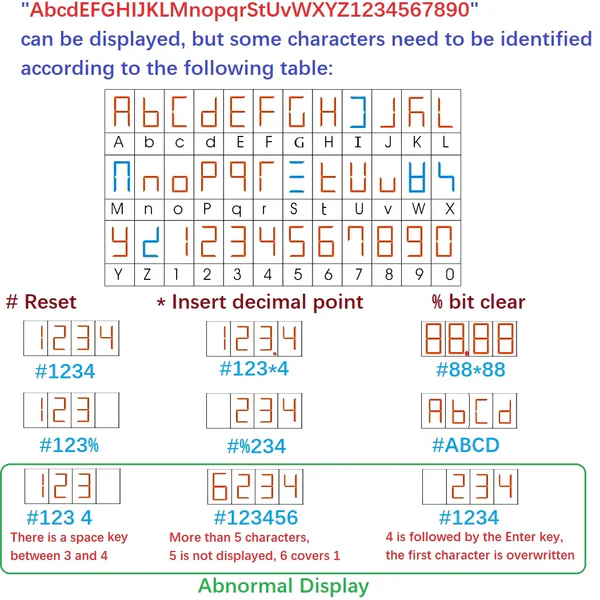

Protocol

3️⃣ Using sprintf to print to an array

🧵 sprintf vs printf in Embedded C

Feature sprintf printf
Purpose Formats data into a string buffer Sends formatted output to standard output
Output Target A char[] buffer (you define it) Typically stdout (debug console)
Use Case Pre-formatting data for UART, LCD, or display modules Debugging or direct console output
Memory Usage Slightly more (due to buffer allocation) Depends on implementation
Flexibility Can be redirected to any output (UART, SPI, etc.) Limited to environments with stdout support

Example:

    char buffer[5];           // 4 digits + null terminator
    uint16_t value = 75;
    sprintf(buffer, "%#04u", value);  // buffer = "0075"
    //Sent to UART

This ensures:

  • 0 → “0000”
  • 75 → “0075”
  • 999 → “0999”
  • 9999 → “9999”

4️⃣ Student Activity

  • Show a 4-digit counter that starts at 0000 and increments every 500[ms]

  • Make sure the counter rolls from 9999 to 0000

  • Advanced: Add 2 buttons to change the counter to count UP or DOWN. Keep the rolling consitent if it’s counting UP or DOWN.
